High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

Skywin Foodstuff Machinery Co., Ltd.
Contact Now

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

Brand Name : SKYWIN

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : $16,000.00 - $80,000.00 / Set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 Set/Sets per Month

Delivery Time : 50 days

Packaging Details : The machine shall be packaged by wooden cases, which are suitable for long distance transportation and seaworthy.

Usage : Food Industry Equipment,Biscuit,Sancks,Sancks of Ice Cream Cone Wafer Biscuit Machine

Function : biscuit making

Condition : New

Automatic : PLC Controlled

Application fields : Bakery, Snack food factory

Machinery Test Report : Provided

Video Outgoing-inspection : Provided

Output Product Name : Sandwich Biscuit

Marketing Type : Hot Product

Key Selling Points : High Productivity

Material : 304 Stainless Steel

After-sales service provided : Field maintenance and repair service

Contact Now

Low Cost Automatic Easy To Operate Two Line Sandwich Biscuit Machine


Product Descripton:

Biscuit filling machine is suitable for biscuit production line.You can use the sandwich machine to put chocolate, cream, jam and so on on the biscuits. The filling speed of the sandwich machine is very fast, the output is high, and the operation is very convenient.

Product features:

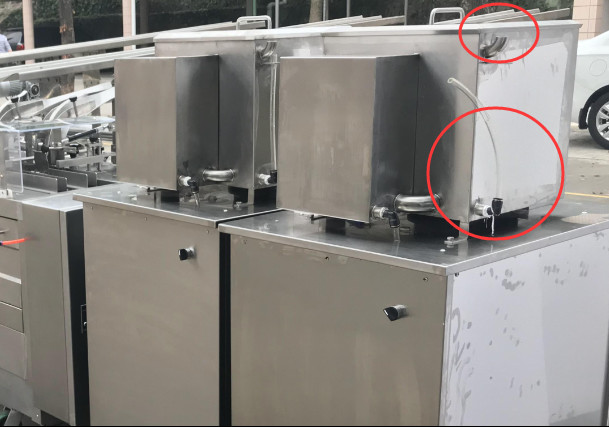

1. 304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

2. Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster;

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

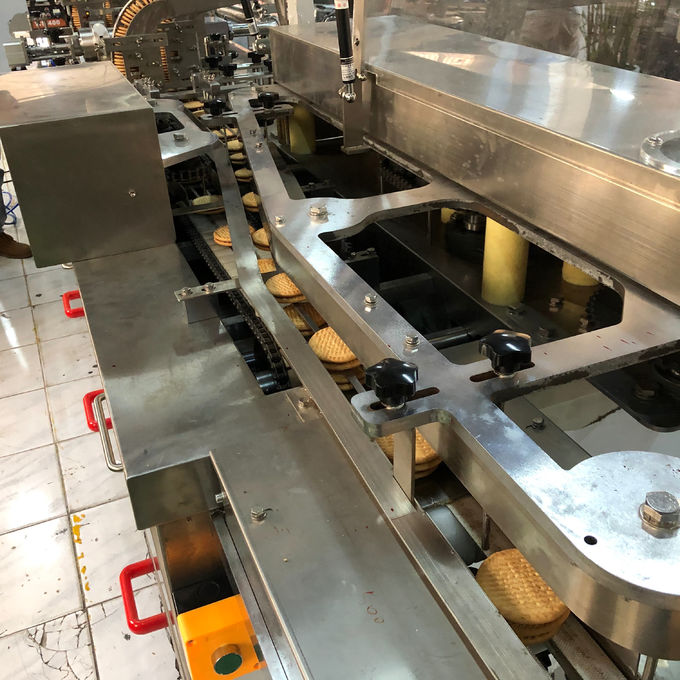

3. The machine width can be adjusted by hand wheel.

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

4. Machine setup, hopper control and speed adjustment are controlled by Siemens brand PLC touch screen.

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

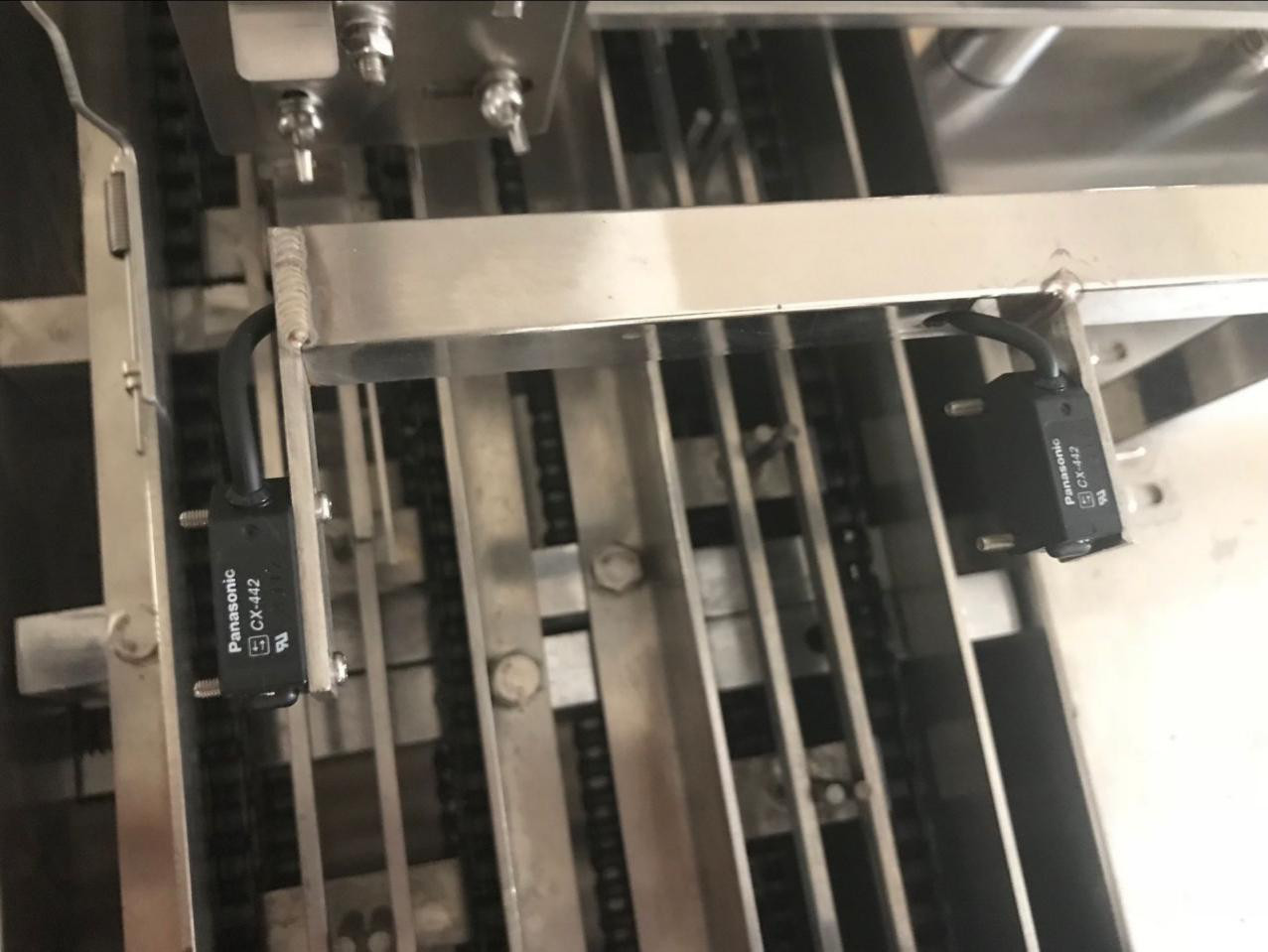

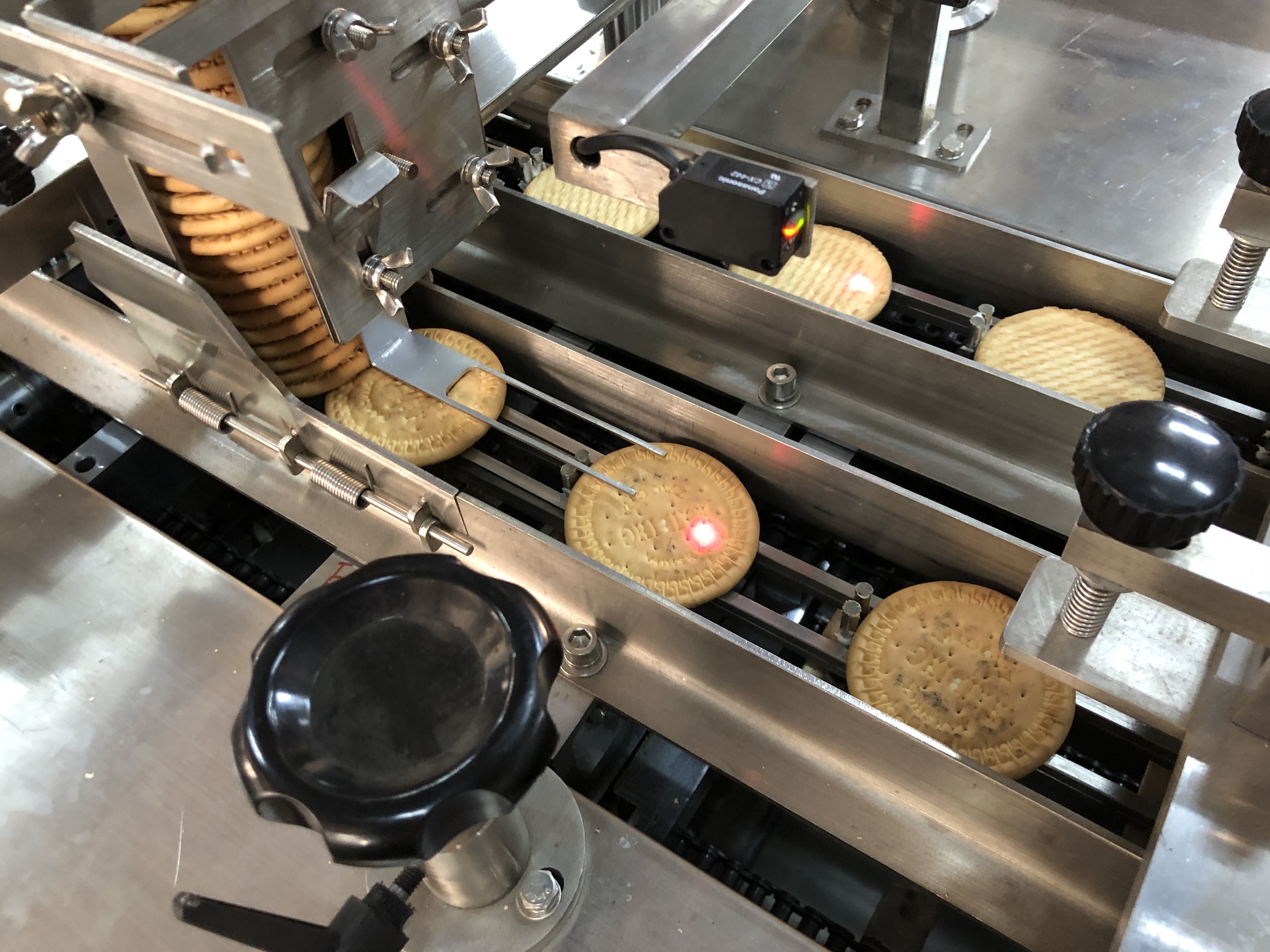

5. When the sensor recognizes that there are no cookies, the cream doesn't come out.

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine

Product specification:

Type Single Lane Sandwiching Machine Two Lane Sandwiching Machine
Biscuit size Square Rectangle
L (35-70) * W (30-60) * H (3-8) mm L (35-80) * W (40-65) mm
Round Round
Φ35 - 70 mm thickness: 3 - 8 mm Φ35 - 65mm thickness:4 - 8mm
Capacity 100 - 600 sandwiches / min 600 - 1200 sandwiches/min
Operating voltage single - phase AC 220 V 50 Hz single - phase AC 220 V 50 Hz
machine size 7000 * 1900 * 1470 mm 7430 * 3300 * 1500 mm
Weight (Cream tanks capacity ) 1120 kgs (40L) 1350 kgs (50L)
total power 4 Kw 4 Kw
Special specification is acceptable


High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit MachineHigh Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit MachineHigh Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine​​

High Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit MachineHigh Speed 304 SS Filling Jam Chocolate Automatic Sandwich Biscuit Machine
